MQC Series

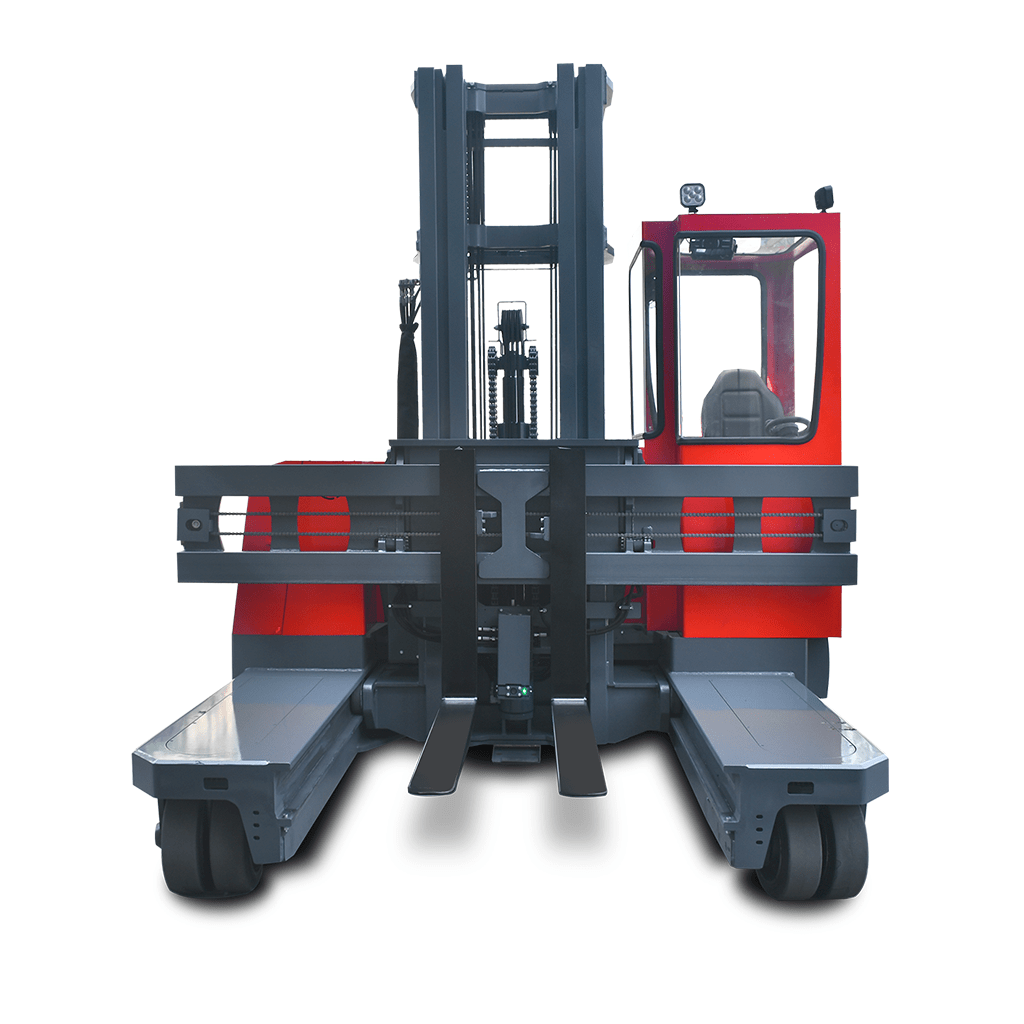

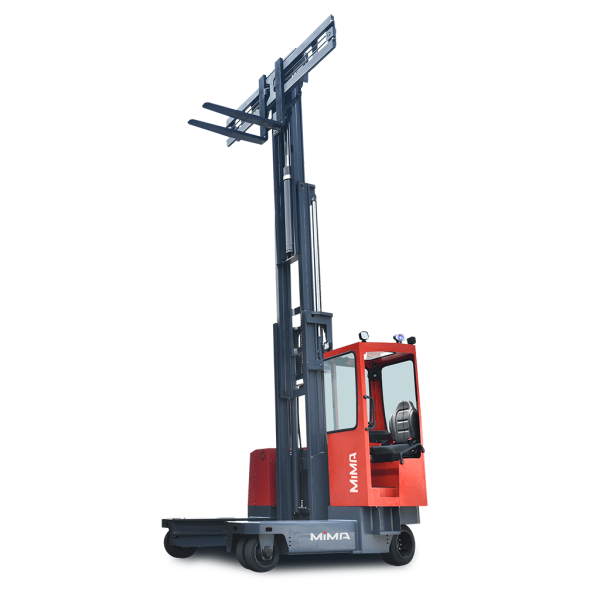

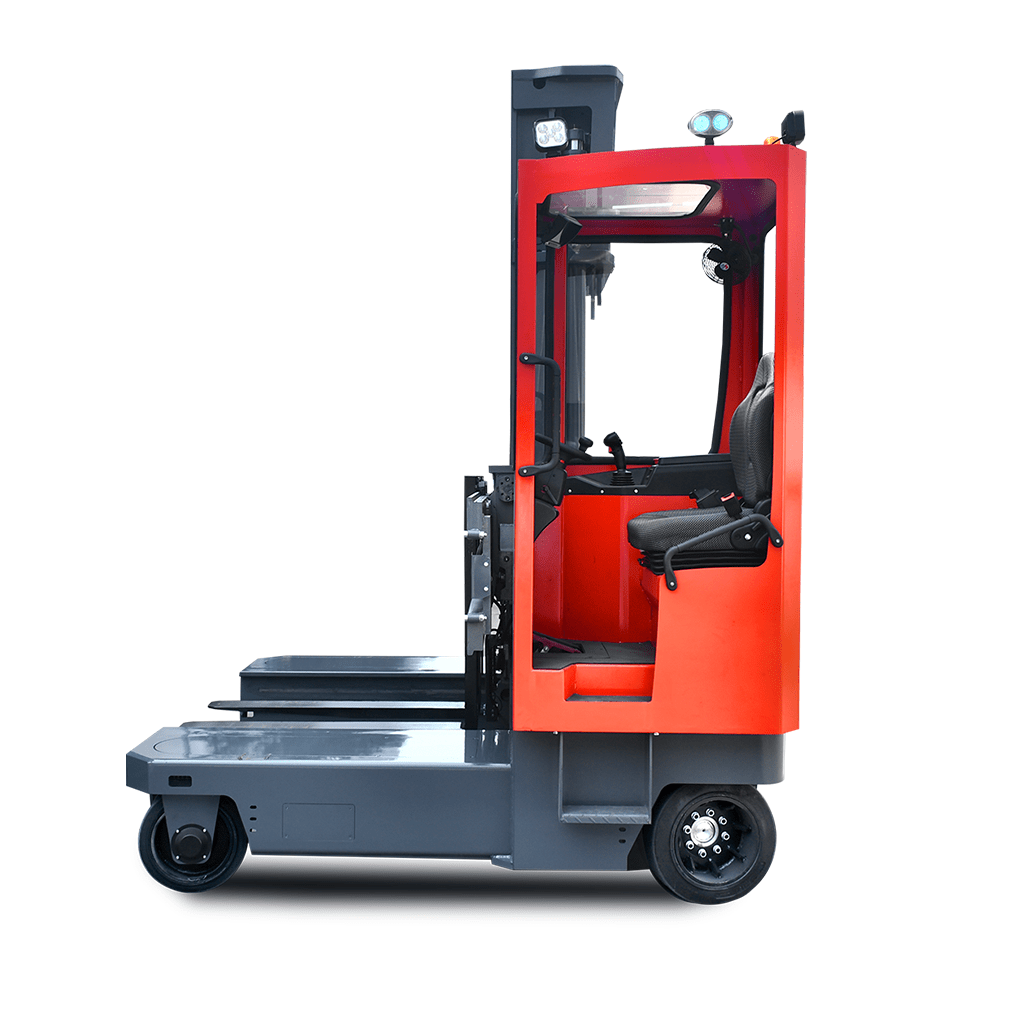

MQC Series – Multi-Directional Lithium Forklift Truck

Capacity: 2,500 to 5,000 KGS

Lift Height: 4.5m up to 8.8m

The MQC Series is a high-capacity, multi-directional reach truck designed for efficient handling of long and heavy loads in narrow aisle environments. With rated capacities from 2.5 to 5.0 tonnes, it features a mast that moves forward or retracts as a complete unit, and includes an extra-wide fork positioner for greater load stability. Equipped with independent four-wheel steering, the MQC supports a full range of movement — including straight-line, sideways, diagonal, and on-the-spot rotation. When operating laterally, it requires minimal aisle width, making it ideal for handling long materials like pipes, timber, or panels in space-constrained warehouse settings.

Ideal for:

  • Builders Merchants, Timber Industry and Steel Industry
  • Long-load handling (pipes, panels, timber)
  • Multi-directional operations requiring flexibility and fast turnaround
  • Rated load – 3000Kgs
  • Load center – 600mm.
  • Front overhang – 270mm.
  • Service   weight(incl.battery) – 5585kg
  • No-load turn around diameter  – 2660mm.
  • Fork size – 1070/125/45mm.
  • Min ground clearance – 100mm
  • Driving speed – 8.0~9.0km/h.
  • Lifting   speed,load/unloaded – 8/10 %
  • Braking method – Electromagnetic  – Equipped with rear-wheel electromagnetic brake, the braking effect is better, and it can be used on slippery and icy ground, making the operator’s work safer
  • Steering system – EPS
  • Battery replacement – Hoisting

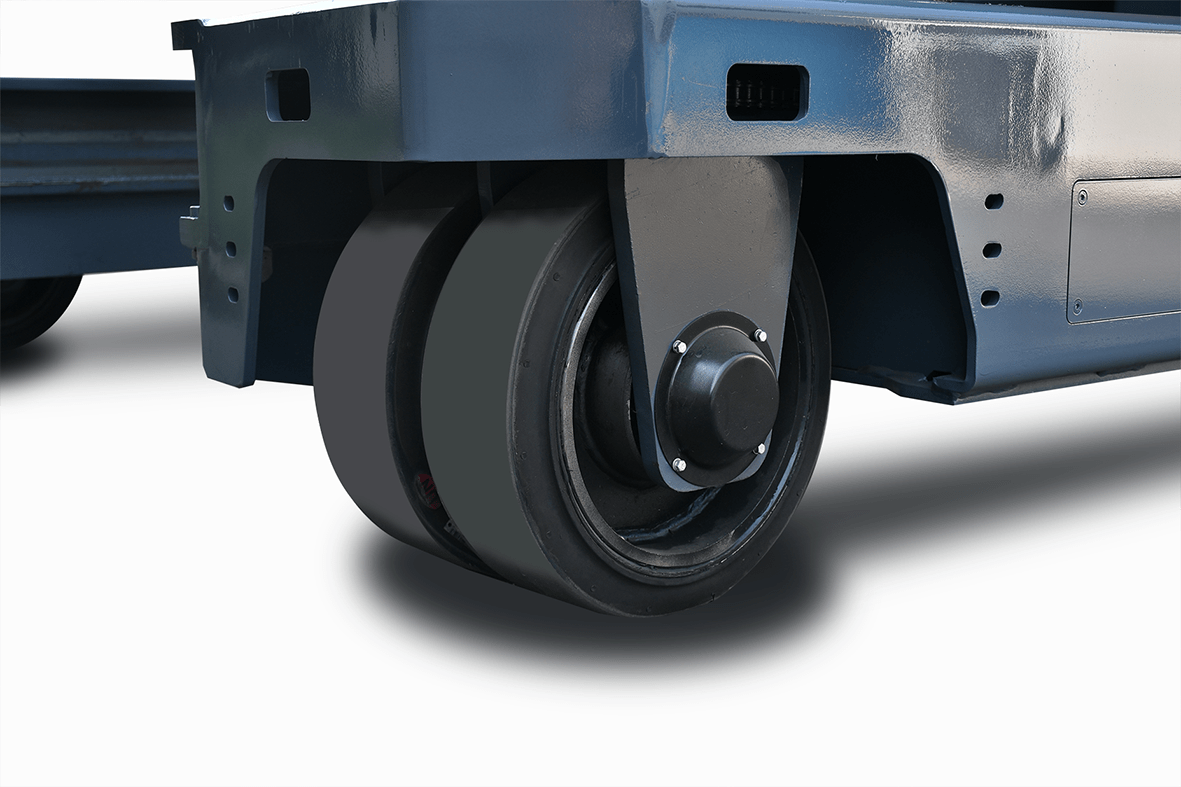

  • Solid rubber tire: excellent road adaptability, easy to deal with various complex conditions of slippery / potholes, and can be used indoors and outdoors;
  • Strong battery life: full AC system design, with high efficiency and energy saving, to meet multiple operating requirements under heavy working conditions

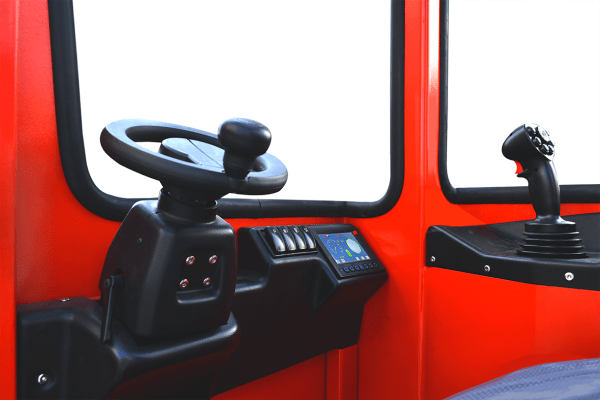

  • Comfort: The ergonomically designed cab provides a large operating space and excellent all-round visibility.
  • Free maintenance AC drive system and full AC system
  • Fully enclosed Steel Cab & Heater as standard – (Half cab is available)
  • Drive wheel Position Display,
  • multifunctional Joystick.
  • Compact Chassis Design: All wheels remain within the body for a reduced footprint and enhanced safety.
  • Low-Level Step: Allows easy entry and exit, improving operator comfort and efficiency.
  • Centrally Positioned Seat: Maximises forward visibility for safer, more confident operation.

Model:

MQC30

Year of Manufacture:

2024

Hours Reading

1 Hours

Fuel Type:

Lithium Electric

Side Shift:

No

Capacity:

3500kgs

Lift Height

4.5m up to 8.8m

Mast Type:

3 Stage Full Free Lift

Health & Safety:

12 months loler supplied

Truck Warranty:

2 years truck warranty.

Battery Warranty:

5 Years battery warranty

Battery Spec:

48v / 460ah

Warranty:

3 Years

Additional Info:

  • Fork positioner
  • Camera system
  • 1200mm Fork Length
  • Curtis controller
  • Full Steel Cab with Heater.
  • Drive wheel Position Display
  • multifunctional Joystick
  • Free maintenance AC drive system and full AC system

  • High capacity range from 2,500 kg to 5,000 kg supports heavy duty applications
  • Multi directional capability allows efficient handling of long and bulky loads
  • Designed for narrow aisle environments to maximise storage space
  • Suitable for handling materials such as pipes, timber and long goods
  • Strong gradeability and ground clearance support operation across different surfaces
  • Lithium battery provides consistent performance with reduced downtime and maintenance

FAQ's

The MQC Series offers capacities ranging from 2,500 kg up to 5,000 kg depending on the model.

It provides lift heights from 4.5 metres up to 8.8 metres.

It is designed for long and heavy loads such as pipes, timber, and similar materials.

Yes, it is designed to operate in narrow aisles while maintaining efficient handling of long loads.

It uses a lithium battery, providing consistent performance and reduced maintenance requirements.
