TKA Series

TKA Series – 3-Wheel Lithium Counterbalance Forklift

Capacity: 1,000 – 1,500 KGS

Lift Height: 2.5m up to 4.5m

The TKA Series is a compact and agile 3-wheel Lithium electric counterbalance forklift, designed for tight turning spaces and high-efficiency handling in confined warehouse environments. With lift heights From 2.5m up to 4.8 metres and capacities of 1.0 or 1.5 tonnes, the TKA is ideal for narrow aisle work, retail logistics, and light-to-medium duty stacking tasks. Equipped with dual-drive AC motors, regenerative braking, and a tight turning radius, the TKA Series offers excellent manoeuvrability, low operating noise, and responsive control — all while delivering zero-emission performance.

Ideal for:

  • Warehouses with limited space or tight aisles
  • Indoor stacking, loading, and pallet movement
  • Operators needing compact handling with full counterbalance versatility
  • 1150mm fork length
  • New large-screen LED instrument
  • Load back-rest

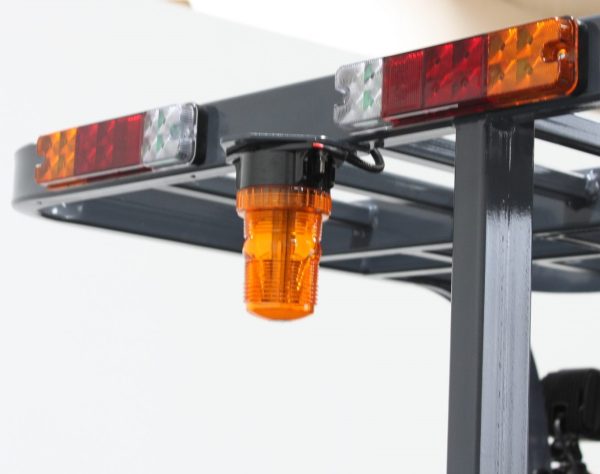

  • Beacon
  • Container lights
  • Reverse light
  • Blue Safety Light.
  • Curtis Control system.
  • Pure Electric steering for easier control and efficiency
  • Aisle width – 1000mm x 1200mm –  2925mm
  • Aisle width – 800mm x 1200mm – 3037mm
  • Turning Circle –  1415mm
  • Overall length –  1576mm
  • Overall width –  912mm
  • Ground clearance, body – 90mm
  • Service weight (incl. battery) – 1990kg

Model:

TKA10 / TKA15

Year of Manufacture:

2025

Hours Reading

1

Fuel Type:

Lithium electric.

Side Shift:

No

Capacity:

1500kgs

Lift Height

2.5 up to 4.5m

Mast Type:

2 Stage Duplex / 3 Stage Triplex

Health & Safety:

12 months loler supplied

Truck Warranty:

2000 HRS or 2 Years truck warranty : Subject to status.

Battery Warranty:

5 years battery Cell warranty.

Battery Spec:

(TKA10 24V/200ah) | (TKA15 - 24V300AH)

Warranty:

24 Months

Additional Info:

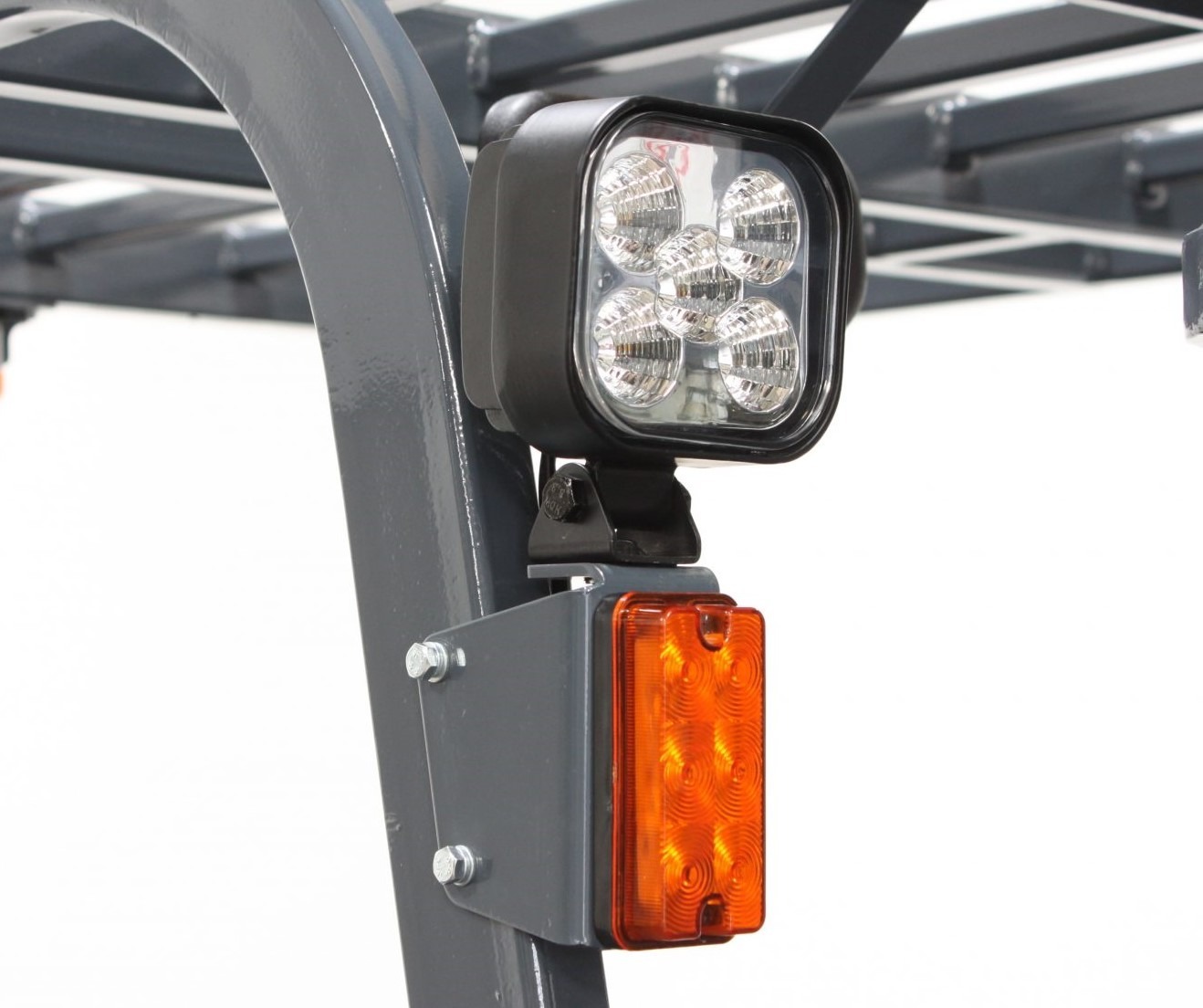

  • Front Lights.
  • Indicators
  • Driver Mirror.
  • 3 wheel Model.
  • Ultra Compact Model.
  • Charger: 24v/50a – TKA10
  • Charger: 24v/100a – TKA15



  • Compact 3-wheel design allows tighter turning in confined warehouse spaces
  • Lithium battery delivers consistent performance with faster charging and lower maintenance
  • Suitable for both indoor and outdoor use, offering flexibility across different operations
  • Low operating noise improves working conditions for operators
  • Regenerative braking improves efficiency and reduces wear on components
  • Strong stability and load handling across the full lift height range

FAQ's

The TKA Series offers a lifting capacity ranging from 1,000 kg to 1,500 kg depending on the model.

It is designed for both indoor and outdoor use, making it suitable for warehouses, yards, and mixed operations.

The forklift offers lift heights from 2.5 metres up to 4.5 metres depending on configuration.

Yes, it is equipped with a lithium battery, providing faster charging, consistent power, and reduced maintenance.

Yes, the 3-wheel design allows tighter turning, making it ideal for confined and narrow working areas.
